| Brand | : Furuno |
| SKU Produk | : I03K034SK0157JP1149P13059 |
Rp. 29.430.000,- / Unit

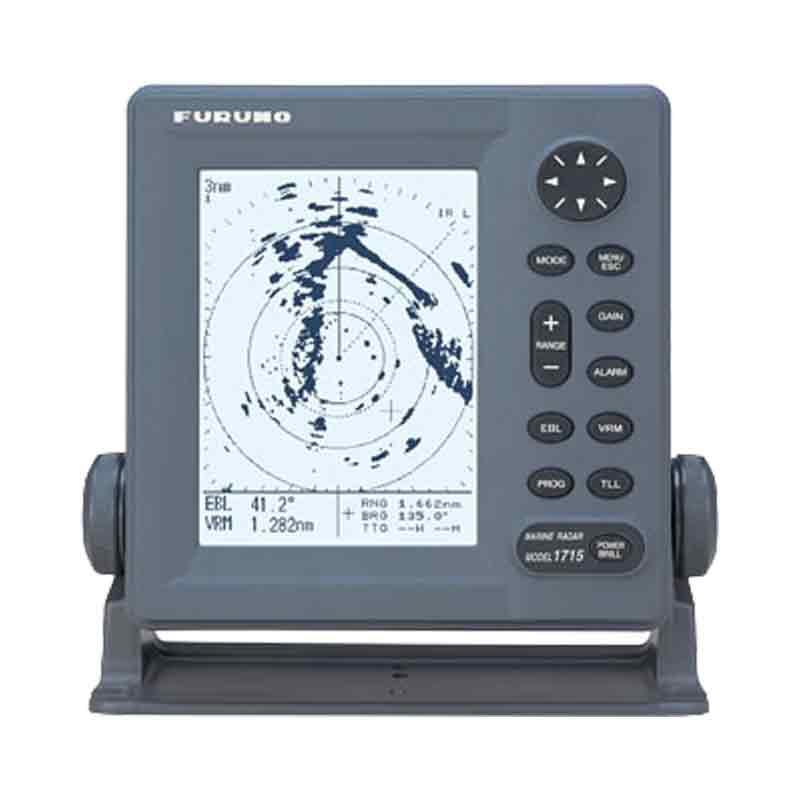

The MODEL 1715 is a high contrast LCD radar designed for pleasure craft and small fishing boats. Radar echoes are presented in four shades of gray on the 7 Silver Bright LCD.
| ANTENNA | : |
| Peak Output Power | 2.2 kW |
| Type | ø460 mm radome (18.1'') |
| Frequency | 9410±30 MHz (X-band) |
| Beam Width (Horizontal) | 5.2? |
| Beam Width (Vertical) | 25? |
| Range Scales | 0.125-24 nm |
| Antenna Rotation Speed | 24/31/41 rpm (auto-select according to pulselength) |
| Weight | 5.1 kg |
| DISPLAY | : |
| Display Unit | 7'' monochrome LCD |
| Display Mode | Head up |
| Other Mode / Functions | Echo trails |
| ENVIRONMENT | : |
| Temperature | Display unit: -15°C to +55°C and Antenna unit: -25°C to +70°C |
| Waterproofing | Display unit: IPX5 and Antenna unit: IPX6 |
| POWER SUPPLY | : |
| Power Supply / Consumption Current | 12-24 VDC: 3.2-1.4 A |
