| Brand | : Furuno |
| SKU Produk | : I03K034SK0157JP1153P13040 |
| Warna Tersedia | : Hitam |
Rp. 10.900.000,- / Unit

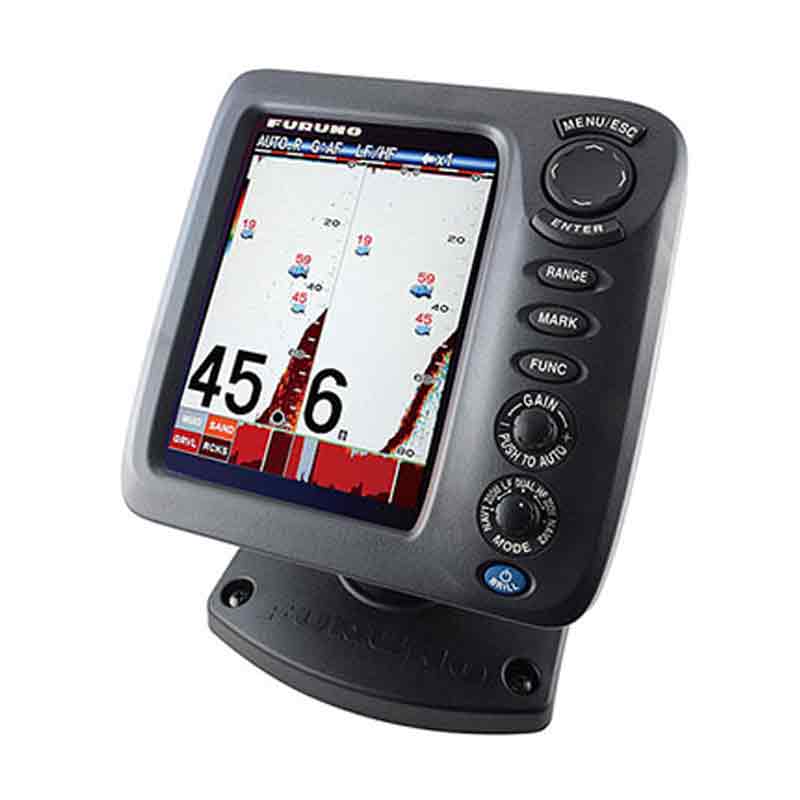

Equipped with Furuno’s latest technology: the Bottom Discrimination Function - Analyze bottom structure*
Provides an at-a-glance recognition of bottom from with four types of graphical displays (Rocks/Gravel/Sand/Mud) when connected to required thru-hull or transom mount transducer.
* Thru-hull or transom transducer mount required.
ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology
White Line feature - Discriminate fish lying near the bottom
? The top edge of the sea floor is displayed in white to clearly show structures.Configurable Alarm function (depth, fish echoes, etc.)
Post-processing Gain Control applied to all echoes displayed on the screen
Share and display information on a chart plotter*
Furuno's TLL (Target Lat/Lon) output allows you to interface the FCV-688 with your chart plotter so that you can mark fishing spots with various information (L/L, Depth, Water Temp, Fish size, Bottom).Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range)
| GENERAL | : |
| Frequency | 50 and 200 KHz |
| Output power | 600 W |
| DISPLAY | : |
| Display type | 5.7 |
| Effective Display Area | 87.1 |
| Pixel number | 640x480 (VGA) |
| Display | Single frequency (50 or 200 KHz), dual frequency, zoom, nav data, a-scope, marker zoom, bottom zoom, bottom-lock, bottom discrimination, ACCU-FISH |
| Basic range | 2-1200m* |
| Alarm | *m, ft, fm, HR, pb can be selected in the menu bottom, fish (normal), ACCU-FISH, fish (b/l), bottom discrimination, fish level, temperature, speed, arrival and battery |
| Language | CV-688C; Chinese, english. CV-688e; english, french, spanish, thai, vietnamese, indonesian, burmese |
| Range phasing | up to 1200m |
| Expansion range | bottom-lock expansion; 2-10m. sectional expansion; 2-1200m |
| Picture advance speed | 8 steps; stop, 1/16, 1/8, 1/4, 1/2, 1, 2, 4 |
| Pulselength & PRR | 0.1-3.0 ms, max 3,000 pulse/min |
| Interface | (input) BWC, GGA, GLL, GNS, HDG, HDT, MDA, MTW, MWV, RMA, RMB, RMC, VHW, VTG, XTE, ZDA. (OUTPUT) DBS, DBT, DPT, MTW*, RMB*, VHW*, TLL* by key operation |
| ENVIRONMENT | : |
| Temperature | -15ºC to +55ºC |
| Waterproofing | IP55 |
| Power supply | 12-24 VDC, 13W |
